Effective use of Shiny modules

# Effective use of Shiny modules
## <code>rstudio::conf(2019L)</code>
### <br>Eric Nantz <br> Eli Lilly and Company <br> 2019/1/18 <br> Slides: <a href='https://bit.ly/modules2019'>bit.ly/modules2019</a> <br><br><br> <a href='https://twitter.com/thercast'> <i class='fab  fa-twitter '></i><span class="citation">@thercast</span></a> <br> <a href='https://github.com/rpodcast'> <i class='fab  fa-github ' ></i>rpodcast</a> <br> <a href='https://gitlab.com/rpodcast'> <i class='fab  fa-gitlab ' ></i>rpodcast</a> <br><i class='fas  fa-microphone '></i> <a href='https://r-podcast.org'>r-podcast.org</a><br>

---

<div class="my-footer"><span>bit.ly/modules2019&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;Effective use of Shiny Modules&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;&emsp;rstudio::conf 2019</span></div>

---

# My Journey with Shiny

__First efforts__: Small prototypes to showcase possibilities and [learn by doing](https://r-podcast.org/15)

<i class="fas  fa-rocket "></i> Ascend Joe Cheng's [ladder of enlightment](https://github.com/rstudio/ShinyDeveloperConference/blob/45737f1f3386fb3a9194c40f9a999b58f60971de/Reactivity/slides.Rmd#L233-L240)

Present day: Developer of __large and complex__ applications integrating multiple systems
]
]

???

* In early days, learning Shiny was a struggle when moving from prototypes to large applications
* ShinyDevCon in 2016

---

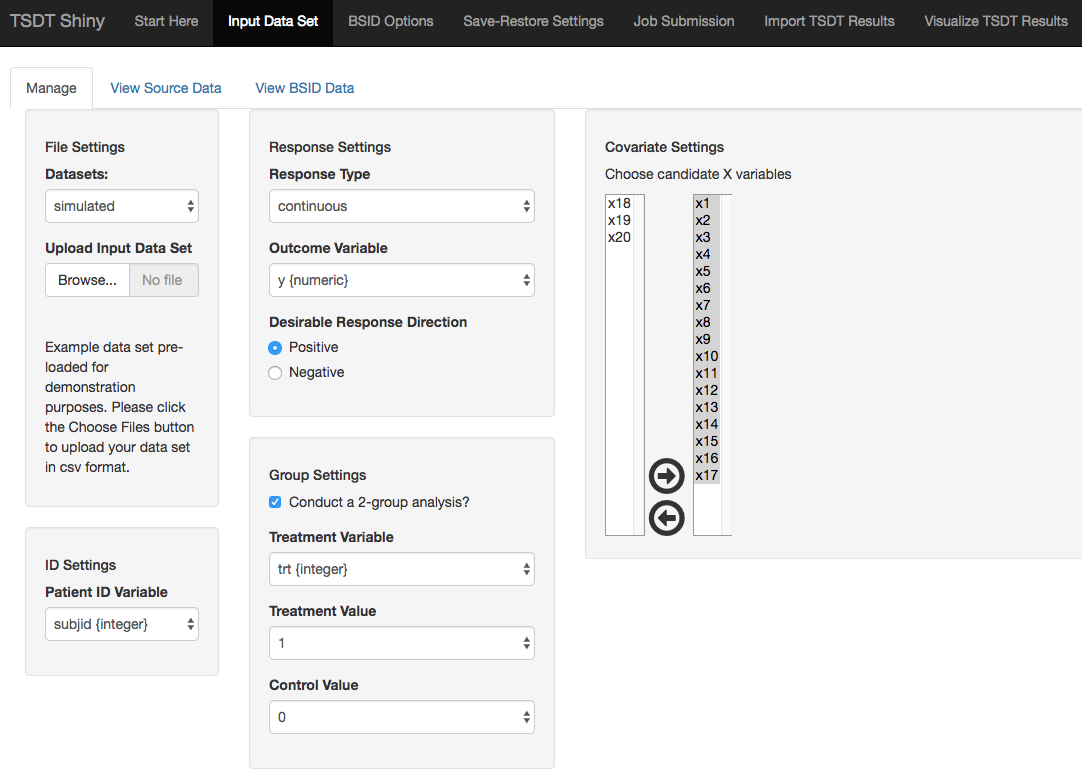

# My First Attempt

.pull-left[
.large[
Empower statisticians with little/no <i class="fab  fa-r-project " style="color:#384CB7;"></i> experience to perform subgroup identification based on [TSDT](https://cran.rstudio.com/web/packages/TSDT/) package

🚧 Non-trivial requirements (persistent sessions, dynamic UI, HPC integration)

__Difficulties__

* Duplicated similar(ish) UI widgets
* Code not organized well
* Extending capabilities was challenging
]
]

???

* common theme: Use Shiny to give web UI front-end to sophisicated algorithms so those with no expertise in R can perform the analyses

---
name: non-modules
background-image: url(img/non_modules_slides.svg)
background-position: center
background-size: contain

???

* Notice how I've duplicated various sub-components (variable select, project settings, visualization, summary table)
* Difficult to reason through the flow from one component to another

---

background-image: url(img/spaghetti.jpg)
background-position: center
background-size: contain

.center[
## [Reactive Spaghetti (Ian Lyttle & Alex Shum)](https://www.rstudio.com/resources/videos/shiny-modules/)
]

---
template: non-modules

---

# Modules to the Rescue!

---

# What are Modules?

## Compose complex apps out of smaller, more understandable pieces

???

* Take a step back: If you have experience with creating R functions and even packages, these are not new concepts to you
* We will visit this theme throughout the presentation

.large[
- Avoid namespace collisions when using same widget across different parts of your app
- Allows you to encapsulate distinct app components
- Organize code into logical and easy-to-understand components
- Facilitates collaboration
]

## Sound familiar?

.large[
- <i class="fab  fa-r-project " style="color:#384CB7;"></i> functions also help avoid collisions in variable names with general R code
- Essential for creating non-trivial and extensive workflows
]

---

background-image: url(img/modules_slide.svg)
background-position: center
background-size: contain

???

* Distinct components mimic the application user's workflow
* No more (copying-pasting) sub-components like visualization, summary table as they are part of their own namespace in the "big" modules
* More logical flow between modules
* I did not arrive at this mindset right away.  It took me a lot of practice and trial-error

---

???

* Most of you in the room are likely at this first stop

<div class="step1">(1) Creating/using simple modules occassionally</div>

<div class="step2">(2) Communication with modules</div>
<div class="step3">(3) Communication between sibling modules</div>

???

* We will illustrate a few concepts to get you on your way to (2) and (3)

---

# All roads lead to these principles:

--
.pull-left[
.center[
## Careful design

What is it trying to accomplish?

🤔 What should I call this module?
]
]
]

???

* If you can't name your module easily, that's a warning sign that it is trying to do too much

--
.pull-right[
.center[
## Inputs & return values

Complexity of return values

Which outputs serve as inputs for other modules?
]
]
]

???

* All of these help future you and collaborators understand the flow of your application

???

* Bold statement, but I can tell you from experience this is true

---
background-image: url(img/ames_explorer_arrows_screenshot.svg)
background-position: center
background-size: contain

[gallery.shinyapps.io/ames-explorer](https://gallery.shinyapps.io/ames-explorer)

[github.com/rpodcast/ames_explorer](https://github.com/rpodcast/ames_explorer)

???

Pull up interactive version if time permits

* Side-by-side scatterplots with variable choices
* Select points via Shiny's interactive [plot brushing](http://shiny.rstudio.com/articles/selecting-rows-of-data.html)
* View additional variables inside a [DT](https://rstudio.github.io/DT/) data table
* Ability to annotate total sales price for data points in table

---

# Document your modules!

```r
#' Variable selection module server-side processing
#'
*#' @param input, output, session: standard shiny boilerplate
#'
*#' @return list with following components
#' \describe{
#'   \item{xvar}{reactive character string indicating x variable selection}
#'   \item{yvar}{reactive character string indicating y variable selection}
#' }
varselect_mod_server <- function(input, output, session) {

* return(
*   list(
*     xvar = reactive({ input$xvar }),
*     yvar = reactive({ input$yvar })
*   )
* )
}
```
]

🗒 Document a module's input(s) and return value(s)

📝 Constructing a named list articulates the __intent__ of a module

![:scale 50%](img/contract.svg)
]

???

* Example of an __accessor__ module.  Simple yet can be very effective
* Explicit return with named list

---

# To () or not to ()
.code150[
```
plot1var <- reactive({ input$xvar })
callModule(mod, "name", `plot1var`)
```
]

.code120[
```
mod <- function(input, output, session, plot1var) {
  foo <- reactive({
    # reference plot1var
    `plot1var()`
  })

  # return key reactive
  return(`foo`)
}
```
]

---

# To () or not to ()

.pull-left[

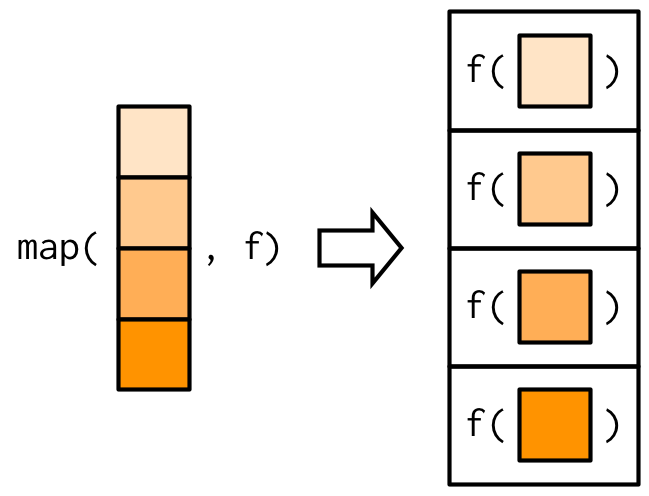

![:scale 100%](img/map.png)
.center[
[Advanced R (Second Edition)](https://adv-r.hadley.nz/functionals.html)
]
]

???

* `map` function from `purrr` similar to `lapply` family of functions

.pull-right[
.large[
`purrr::map()` takes __name__ of function as parameter, but __invokes__ function on each piece of supplied vector
]

## How does this apply to modules?

]

---

# To () or not to ()

.pull-left[
.code120[
```
plot1var <- reactive({ input$xvar })
callModule(mod, "name", `plot1var`)
```
]

.code90[
```
mod <- function(input, output, session, plot1var) {
  foo <- reactive({
    # reference plot1var
    `plot1var()`
  })

  # return key reactive
  return(`foo`)
}
```
]
]

Inside module, __invoke__ reactive parameter as you would any other reactive in Shiny: `plot1var()`

Any reactive(s) returned by module should also be referenced by __name__: `foo`, not `foo()`
]
]

???

* `callModule` executes the `mod` module

---

# Static or reactive inputs?

```r
#' ...
#' @param dataset data frame (`non-reactive`) with variables
#'   necessary for scatterplot
#' ...
scatterplot_server_mod <- function(input, output, session, `dataset`, plot1vars,plot2vars) {


  plot1_obj <- reactive({
    p <- scatter_sales(`dataset`, xvar = plot1vars$xvar(), yvar = plot1vars$yvar())
    return(p)
  })

  plot2_obj <- reactive({
    p <- scatter_sales(`dataset`, xvar = plot2vars$xvar(), yvar = plot2vars$yvar())
    return(p)
  })

  # additional code omitted
}
```
]
]

* `dataset` does not change within the application
* Only need the __present__ value
]
]

---

# Present or future value?

```r
#' ...
#' @param plot1_vars list with `reactive` x-variable name (called xvar)
#'   and y-variable name (called yvar) for plot 1
#' @param plot2_vars list with `reactive` x-variable name (called xvar)
#'   and y-variable name (called yvar) for plot 2
scatterplot_server_mod <- function(input, output, session, dataset, `plot1vars`,`plot2vars`) {


  plot1_obj <- reactive({
    p <- scatter_sales(dataset, xvar = `plot1vars$xvar()`, yvar = `plot1vars$yvar()`)
    return(p)
  })

  plot2_obj <- reactive({
    p <- scatter_sales(dataset, xvar = `plot2vars$xvar()`, yvar = `plot2vars$yvar()`)
    return(p)
  })

  # additional code omitted
}
```
]
]

Not just the __present__ value, but the __future__ value too

How to correctly reference these inputs?

❌ `plot1vars()$yvar`

✅ `plot1vars$yvar()`
]

---
background-image: url(img/sink_background.png)
background-size: cover

# Traps to avoid

```r
# in main app, set up placeholder
r_data <- reactiveValues()

# pass r_data around as input parameter in all modules
module1_mod <- function(input, output, session, r_data) {

  obj1 <- reactive({
    # various processing ...
    foo <- complicated_function()
    r_data[['obj1']] <- foo
  })

  # Return something? Nah, I took care of that already!
}

# imagine many other modules as above ...
callModule(module1_mod, "id1", r_data)
callModule(module2_mod, "id2", r_data)
```
]
]

???

* I used this approach in my first attempt at creating modules in a complex app
* As app got bigger, more clutter in the sink

.large[
* __Hidden State__: Difficult to pinpoint which module(s) impact `r_data` objects
* Only certain objects from `r_data` are needed in a given module
* Lose sight of the __contracts__ between modules

__Perspective__: Passing environments back and forth between typical <i class="fab  fa-r-project " style="color:#384CB7;"></i> functions would be a bad idea too!
]
]

---
background-image: url(https://media.giphy.com/media/l41YBHH1A6OPQ5iXS/giphy.gif)
background-size: cover
class: inverse, clear, center, middle

---

# You may already know...

.large[
* <i class="fab  fa-r-project " style="color:#384CB7;"></i> is well-suited for interactive workflows in data science
* Functions become an essential building-block when moving from prototypes to non-trivial workflows
* Define clear function inputs and return values for effective structure
]

## Is it any different when creating Shiny apps?  No!

.large[
Using modules combined with the principles discussed today is __essential__ to bring software engineering best practices to application development

* Determine purpose of the module
* Documentation for inputs and outputs
* Define the relationships between modules
]
---

# What's in it for me?

## Avoid namespace collisions when re-using widgets across application

## Organize application with distinct components

## Best practices for <i class="fab  fa-r-project " style="color:#384CB7;"></i> development translate well with modules

---

# Calls to action

.large[
Read the new article on [module communication best practices](http://shiny.rstudio.com/articles/communicate-bet-modules.html) at [shiny.rstudio.com](https://shiny.rstudio.com)
* 👀 for more articles this year on additional module topics

Review [Ames Housing Explorer app](https://gallery.shinyapps.io/ames-explorer) that demonstrates the principles discussed today and more.
* Code available on <i class="fab  fa-github "></i>: [github.com/rpodcast/ames_explorer](https://github.com/rpodcast/ames_explorer)
]

## Keep on the Modules highway and it will pay off!
]

---
